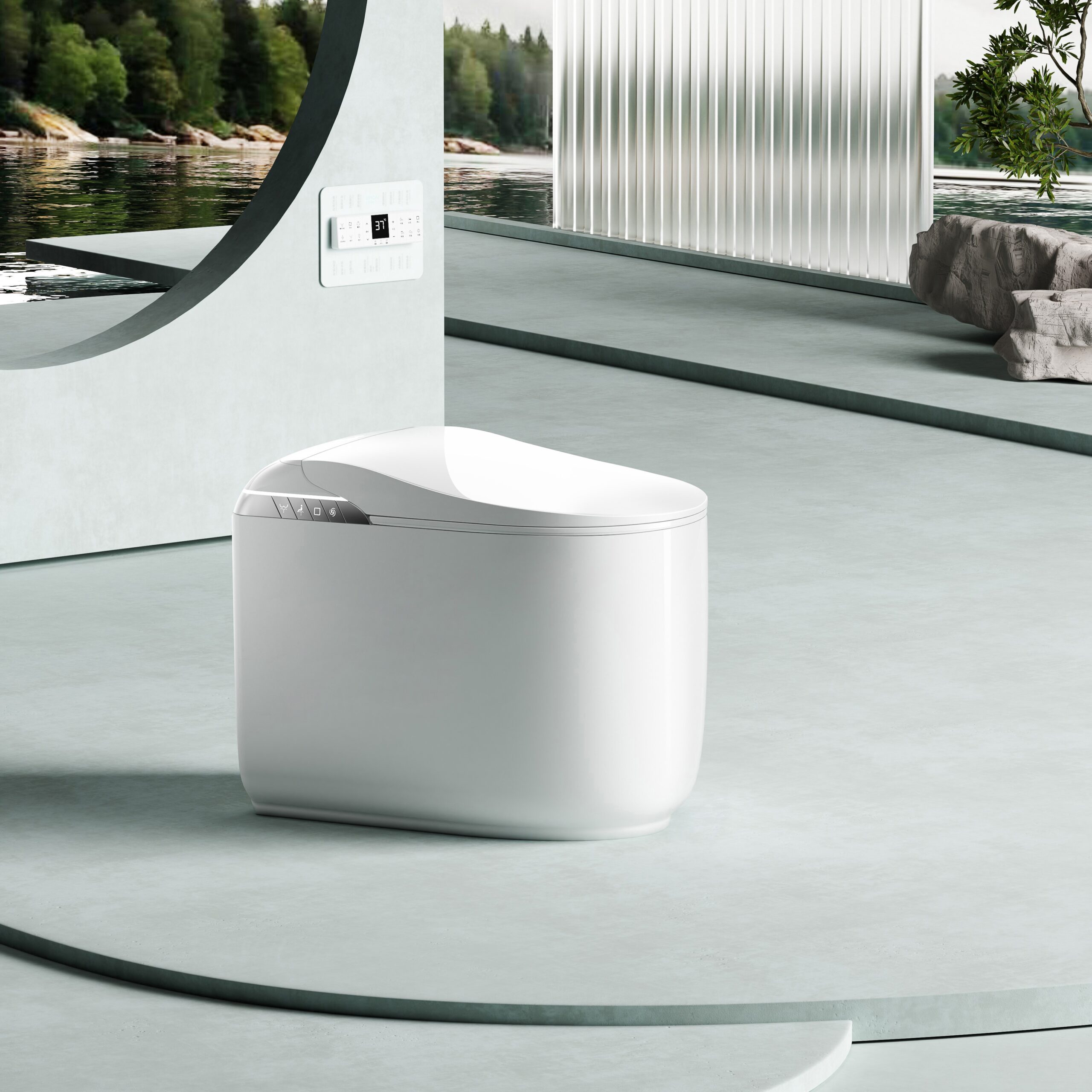

MODEL E80
590 mm Compact Design
A compact 590 mm floor-mounted smart toilet with a 480 mm overall height. Standard and high configurations offer different washing and drying packages.
Product Specifications
| Model | E80 |
|---|---|
| Installation | Floor-mounted |
| Dimensions (L × W × H) | 590 × 380 × 480 mm |
| Drainage | Floor drainage |
| Rough-in options | 300 mm / 400 mm |
| Flushing system | Jet siphon |
| Water heating | Instant heating |
| Configuration | Standard / High |
Features and Configuration
A compact 590 mm floor-mounted smart toilet with a 480 mm overall height. Standard and high configurations offer different washing and drying packages.
Functions vary by configuration. Confirm the exact function list, finish and flushing version with BIKI before placing an order. Automatic lid operation and other optional features are not included in every version.
Installation and Market Requirements
The 300 mm rough-in is approximately 11.8 inches. It is not a confirmed substitute for a US 12-inch rough-in. Verify flange position, outlet dimensions and installation clearance before specifying this model.
Confirm the required voltage and frequency, plug, water-pressure range, flush volume, and model-specific certification documents for your destination market. Certification is not represented as approved on this page.
Request E80 Details
Previously listed sample terms: minimum order 1 set and delivery 7–15 days. Confirm current availability and the lead time for your chosen configuration in the quotation.
Tell us your destination market, required configuration, finish and order quantity. Ask for the current dimension drawing, function matrix and certification documents.
